Product Description

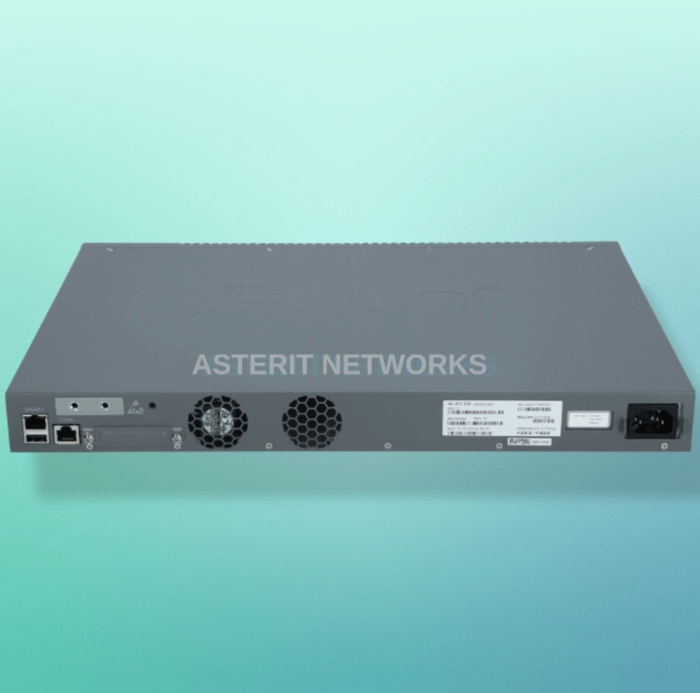

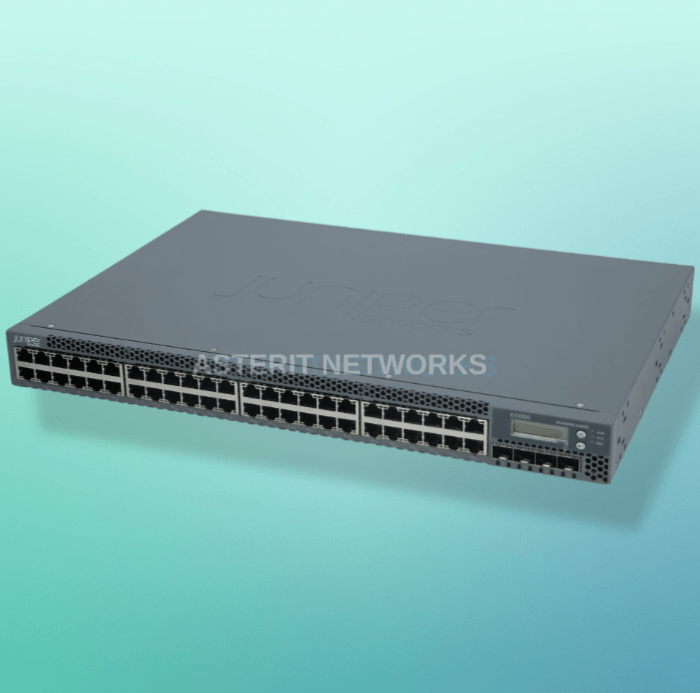

EX3300, 48-port 10/100/1000BaseT with 4 SFP+ 1/10G uplink ports (optics not included)
Product information
Dimensions & Weight
Depth: 31 cm
Height: 4.4 cm
Weight: 4.9 kg
Width: 43.7 cm
Environmental Parameters
Humidity Range Operating: 10 – 85% (non-condensing)
Humidity Range Storage: 0 – 95% (non-condensing)
Max Operating Temperature: 45 °C
Max Storage Temperature: 70 °C
Min Operating Temperature: 0 °C
Min Storage Temperature: -40 °C
Expansion / Connectivity
Interfaces: 4 x SFP/SFP+ ¦ 48 x 1000Base-T RJ-45
General
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity: Virtual interfaces (VLANs): 4096 ¦ IGMP snooping entries: 3000 ¦ ARP entries: 4000 ¦ IPv4 routes: 8000
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Device Type: Switch – 48 ports – stackable
Enclosure Type: Back to front airflow desktop 1U
Encryption Algorithm: MD5, TLS, PEAP, TTLS
Features: Flow control, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, DiffServ support, store and forward, IPv6 support, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), DHCP server, temperature sensor, Time Domain Reflectometry (TDR), Non-Stop Bridging (NSB), Non-Stop Routing (NSR), Per-VLAN Spanning Tree Plus (PVST+), IPv4 support, LLDP support, Link Aggregation Control Protocol (LACP)
Flash Memory: 1 GB
Jumbo Frame Support: 9216 bytes
MAC Address Table Size: 16000 entries
Max Units In A Stack: 10
Performance: Layer 2 throughput: 130 Mpps ¦ Switching capacity: 176 Gbps
Ports: 48 x 10/100/1000 + 4 x Gigabit SFP / 10 Gigabit SFP+
Processor: 1: 1 GHz
RAM: 1 GB
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI
Routing Protocol: RIP-1, RIP-2, static IPv4 routing
Status Indicators: LCD display
Subtype: Gigabit Ethernet
Miscellaneous
Compliant Standards: CISPR 22 Class A, VCCI Class A ITE, EN55024, EN55022 Class A, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, FIPS 140-2 Level 1, ISO 7779, EN 300 386, CAN/CSA-C22.2 No. 60950-1
TAA Compliant: Yes
Power
Features: Redundant Power System (RPS) connector
Installed Qty: 1 (installed) / 2 (max)
Power Consumption Operational: 73 Watt
Power Device: Internal power supply
Power Provided: 100 Watt
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Voltage Required: AC 120/230 V
