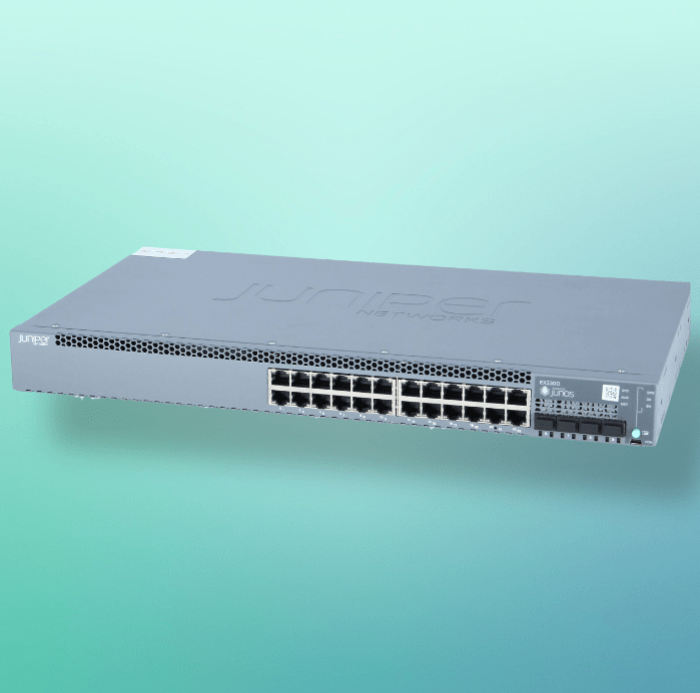

EX2300-24T Juniper Networks EX2300 24-port 10/100/1000BaseT, 4 x 1/10G SFP/SFP+ (optics sold separately)

Sale!
,
SKU: EX2300-24T Categories: ,

EX2300-24T Juniper Networks EX2300 24-port 10/100/1000BaseT, 4 x 1/10G SFP/SFP+ (optics sold separately)

Original price was: $985.00.Current price is: $550.00.

Part#EX2300-24T
Condition# NEW, Factory Sealed, Genuine
EX2300 24-port 10/100/1000BaseT, 4 x 1/10G SFP/SFP+ (optics sold separately)

Jcare is not eligible in US.
We provide, firmware/SW upgrades for free.
License upgrades must be purchased separately.

Warranty# 2 years

Availability: In stock

Free shipping on all orders!

  • No-Risk 30 days Money Back Guarantee!
  • No Hassle Refunds
  • Secure Payments
Guaranteed Safe Checkout

Product Description
EX2300 L2/L3 Gigabit Ethernet (10/100/1000) 1U Rack
Product information
Dimensions & Weight
Depth: 30.98 cm
Height: 4.45 cm
Weight: 3.29 kg
Width: 44.19 cm
Environmental Parameters
Humidity Range Operating: 10 – 85% (non-condensing)
Humidity Range Storage: 0 – 95% (non-condensing)
Max Operating Temperature: 45 °C
Max Storage Temperature: 70 °C
Min Operating Temperature: 0 °C
Min Storage Temperature: -40 °C
Expansion / Connectivity
Interfaces: 24 x 1000Base-T RJ-45 ¦ 4 x 10Gbit LAN SFP+ uplink ¦ 1 x serial management ¦ 1 x 100Base-TX RJ-45 management
General
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity: ACL entries: 1500 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ VLAN Spanning Tree Protocol instances: 253 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv4 hosts: 4096 ¦ IPv4 routes (Multicast): 2048 ¦ Maximum of neighbouring networks: 750 ¦ IPv6 routes (Unicast): 128 ¦ IPv6 hosts: 2048 ¦ IPv6 routes (Multicast): 1024 ¦ QoS hardware queues per port: 8 ¦ Virtual interfaces (VLANs): 4093 ¦ Active VLANs: 2048 ¦ LAG groups: 128 ¦ Maximum member ports per LAG: 8
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1BR
Device Type: Switch – 24 ports – L3 – Managed
Enclosure Type: Desktop, rack-mountable 1U
Encryption Algorithm: MD5, TLS, PEAP, TTLS
Features: BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, DiffServ support, store and forward, High Availability, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, DHCP proxy, Dynamic ARP Inspection (DAI), temperature sensor, Redundant trunk group (RTG), Per-VLAN Spanning Tree Plus (PVST+), Cable Diagnostics Function, DHCP relay, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), VLAN Spanning Tree Protocol (VSTP), NTP time synchronisation, Class of Service (CoS), Strict Priority (SP), tagged VLAN, Captive Portal, DiffServ Code Point (DSCP) support, Smoothed Deficit Weighted Round Robin (SDWRR), system log, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Secure Copy (SCP), Management Information Base (MIB) II
Flash Memory: 2 GB
Jumbo Frame Support: 9216 bytes
MAC Address Table Size: 16000 entries
Performance: Switching capacity: 128 Gbps ¦ Throughput: 95 Mpps
Ports: 24 x 10/100/1000 + 4 x Gigabit SFP / 10 Gigabit SFP+
Processor: 1 x ARM: 1.25 GHz
RAM: 2 GB
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Routing Protocol: RIP-1, RIP-2, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, CIDR
Subtype: Gigabit Ethernet
Miscellaneous
Compliant Standards: TUV GS, CISPR 22 Class A, cUL, EN55024, CB, ICES-003 Class A, UL 60950-1 Second Edition, RoHS, EN 60825-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300386
Power
Power Consumption Operational: 55 Watt
Power Device: Internal power supply

Weight 11.4 lbs
Dimensions 23.75 × 14.5 × 5.5 in
Condition

NEW
