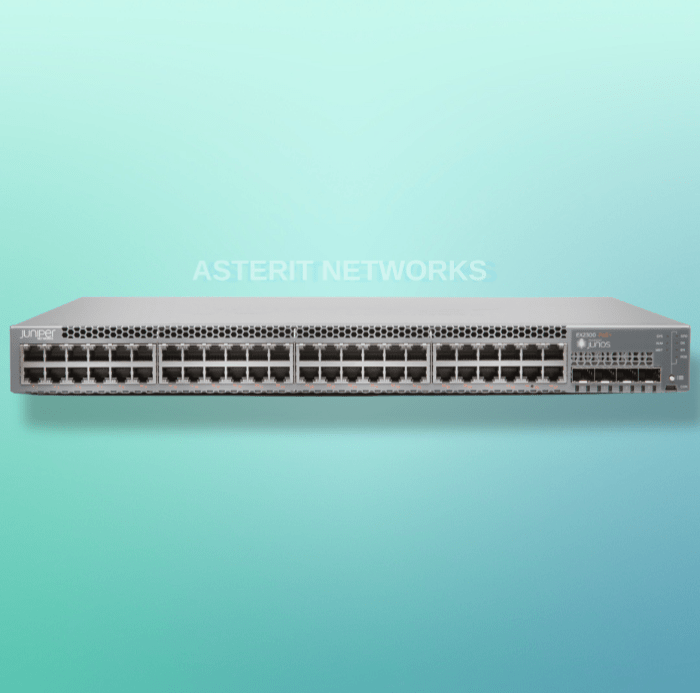

EX2300-48P Juniper Networks EX2300 48-port 10/100/1000BaseT PoE+, 4 x 1/10G SFP/SFP+ (optics sold separately)

SKU: EX2300-48P Categories: ,

EX2300-48P Juniper Networks EX2300 48-port 10/100/1000BaseT PoE+, 4 x 1/10G SFP/SFP+ (optics sold separately)



Condition# NEW, Factory Sealed, Genuine

EX2300 48-port 10/100/1000BaseT PoE+, 4 x 1/10G SFP/SFP+ (optics sold separately)

Jcare is not eligible in US.
We provide, firmware/SW upgrades for free.
License upgrades must be purchased separately.

Warranty# 2 years

Availability: In stock

Free shipping on all orders!

  • No-Risk 30 days Money Back Guarantee!
  • No Hassle Refunds
  • Secure Payments
Guaranteed Safe Checkout

Product Description

EX2300 48-port 10/100/1000BaseT PoE+, 4 x 1/10G SFP/SFP+ (optics sold separately)

Product information
Dimensions & Weight
Depth: 30.98 cm
Height: 4.45 cm
Weight: 5.02 kg
Width: 44.19 cm
Environmental Parameters
Humidity Range Operating: 10 – 85% (non-condensing)
Humidity Range Storage: 0 – 95% (non-condensing)
Max Operating Temperature: 45 °C
Max Storage Temperature: 70 °C
Min Operating Temperature: 0 °C
Min Storage Temperature: -40 °C
Expansion / Connectivity
Interfaces: 48 x 1000Base-T RJ-45 PoE+ – 30 W ¦ 4 x 10Gbit LAN SFP+ uplink ¦ 1 x mini-USB management
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity: QoS hardware queues per port: 8 ¦ Maximum number of concurrent sessions: 4 ¦ ARP entries: 1500 ¦ IPv4 route prefixes: 512 ¦ Host IPv4 routes: 4096 ¦ IPv4 routes (Multicast): 2048 ¦ Layer 3 multicast groups: 2048 ¦ IPv6 neighbour table entries: 1500 ¦ IPv6 route prefixes: 512 ¦ Host IPv6 routes: 2048 ¦ IPv6 routes (Multicast): 1024 ¦ Firewall egress filters: 256 ¦ Firewall ingress filters: 256 ¦ Access Control Entries (ACEs) per ACL: 2000 ¦ LAG groups: 128 ¦ Maximum member ports per LAG: 8 ¦ IGMP snooping entries: 2000 ¦ VSTP instances: 253 ¦ VLAN groups: 4093
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1BR
Device Type: Switch – 48 ports – L3 – Managed
Enclosure Type: Side to side airflow desktop, rack-mountable 1U
Encryption Algorithm: MD5, TLS, PEAP, TTLS
Features: Flow control, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, store and forward, High Availability, SNTP support, Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, RADIUS support, DHCP server, MLD snooping, DHCP proxy, Dynamic ARP Inspection (DAI), temperature sensor, Redundant trunk group (RTG), Per-VLAN Spanning Tree Plus (PVST+), Cable Diagnostics Function, LACP support, DHCP relay, Link Aggregation Control Protocol (LACP), port based access control, port configuration, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), VLAN Spanning Tree Protocol (VSTP), NTP time synchronisation, static routing, Class of Service (CoS), Strict Priority (SP), tagged VLAN, Captive Portal, 802.1x authentication, Ethernet over IP (EtherIP), VoIP support, DiffServ Code Point (DSCP) support, Smoothed Deficit Weighted Round Robin (SDWRR), Uplink Failure Detection (UFD), system log, Weighted Tail Drop (WTD), Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Secure Copy (SCP), Link Aggregation, Management Information Base (MIB) II, MAC address authentication, Voice VLAN, LLDP-MED, RA guard, proxy ARP, DHCP Helper, DSCP Trust, DSCP Marking, traffic monitoring, Telnet server, Telnet client
Flash Memory: 2 GB
Jumbo Frame Support: 9216 bytes
MAC Address Table Size: 16000 entries
Performance: Switching capacity: 176 Gbps ¦ Throughput: 130 Mbps ¦ Backplane speed: 80 Gbps
PoE Budget: 740 W
Ports: 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP / 10 Gigabit SFP+
Power Over Ethernet (PoE): PoE+
Processor: 1 x ARM: 1.25 GHz
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, NTP
Routing Protocol: OSPF, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, PIM-SSM, MLDv2, MLD, CIDR
Subtype: Gigabit Ethernet
Compliant Standards: TUV GS, CISPR 22 Class A, cUL, EN55024, ICES-003 Class A, UL 60950-1 Second Edition, RoHS, EN 60825-1, ISO 7779, EN 60950-1 Second Edition, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CAN/CSA C22.2 No. 60950-1 Second Edition, CB 60950-1, AS/NZS CISPR22 Class A, EN 300386
Power Consumption Operational: 100 Watt
Power Device: Internal power supply

Weight 17 lbs
Dimensions 20 × 21 × 6 in
