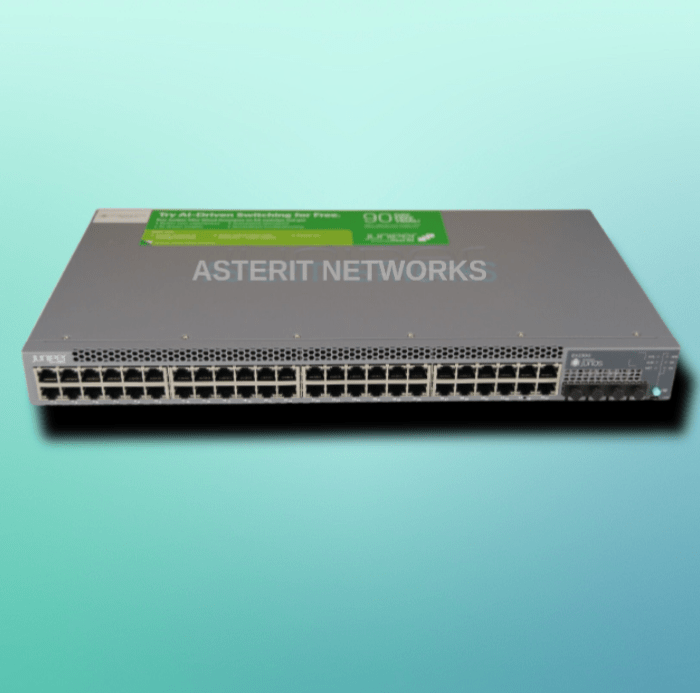

EX2300-48T Juniper Networks EX2300 48-port

SKU: EX2300-48T Categories: ,

EX2300-48T Juniper Networks EX2300 48-port

Original price was: $1,750.00.Current price is: $1,095.00.


Condition#NEW, Factory Sealed, Genuine

EX2300 48-port 10/100/1000BaseT, 4 x 1/10G SFP/SFP+ (optics sold separately)

Jcare is not eligible in US.
We provide, firmware/SW upgrades for free.
License upgrades must be purchased.

Warranty# 2 years

Availability: In stock

Free shipping on all orders!

  • No-Risk 30 days Money Back Guarantee!
  • No Hassle Refunds
  • Secure Payments
Guaranteed Safe Checkout

Product Description
EX2300 48-port 10/100/1000BaseT, 4 x 1/10G SFP/SFP+ (optics sold separately)
Product information
Dimensions & Weight
Depth: 10.2 inch
Height: 1.8 inch
Weight: 11.07 lbs
Width: 17.4 inch
Environmental Parameters
Humidity Range Operating: 10 – 85% (non-condensing)
Humidity Range Storage: 0 – 95% (non-condensing)
Max Operating Temperature: 45 °C
Max Storage Temperature: 70 °C
Min Operating Temperature: 0 °C
Min Storage Temperature: -40 °C
Expansion / Connectivity
Interfaces: 1 x 100Base-TX RJ-45 management, 1 x serial management, 4 x 10Gbit LAN SFP+ uplink, 48 x 1000Base-T RJ-45
Authentication Method: Extensible Authentication Protocol (EAP), RADIUS, Secure Shell v.2 (SSH2), TACACS+
Capacity: ACL entries: 2000, ARP entries: 1500, IPv4 hosts: 4096, IPv4 route prefixes: 1500, IPv4 routes (Multicast): 2048, IPv6 hosts: 2048, IPv6 routes (Multicast): 1024, IPv6 routes (Unicast): 512, LAG groups: 128, Maximum member ports per LAG: 8, Maximum of neighboring networks: 1500, Multiple Spanning Tree Protocol instances: 64, QoS hardware queues per port: 8, Virtual interfaces (VLANs): 4093, VLAN Spanning Tree Protocol instances: 253
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z
Device Type: Switch – 48 ports – L3 – Managed
Enclosure Type: Side to side airflow desktop, rack-mountable 1U
Encryption Algorithm: MD5, PEAP, TLS, TTLS
Features: Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), BOOTP support, Cable Diagnostics Function, Captive Portal, Class of Service (CoS), DHCP client, DHCP proxy, DHCP relay, DHCP server, DHCP snooping, DiffServ Code Point (DSCP) support, DiffServ support, DoS attack prevention, Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, High Availability, ICMP Router Discovery Protocol (IRDP), Internet Control Message Protocol (ICMP), IP Precedence, Management Information Base (MIB), Management Information Base (MIB) II, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), NTP time synchronization, Per-VLAN Spanning Tree Plus (PVST+), Port based access control, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, RARP support, Redundant trunk group (RTG), Secure Copy (SCP), sFlow, Smoothed Deficit Weighted Round Robin (SDWRR), SNTP support, Spanning Tree Protocol (STP) support, Store and forward, Strict Priority (SP), System log, Tagged VLAN, Temperature sensor, VLAN Spanning Tree Protocol (VSTP), VLAN Stacking, VLAN support
Flash Memory: 2 GB
Jumbo Frame Support: 9216 bytes
MAC Address Table Size: 16000 entries
Performance: Switching capacity: 176 Gbps, Throughput: 130 Mbps
PoE Budget: NONE
Ports: 48
Power Over Ethernet (PoE): NONE
Processor: 1 x ARM: 1.25 GHz
Remote Management Protocol: CLI, HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol: CIDR, OSPFv3, RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing
Subtype: Gigabit Ethernet
Compliant Standards: CAN/CSA C22.2 No. 60950-1 Second Edition, CB, CISPR 22 Class A, cUL, EN 300386, EN 55022 Class A, EN 60825-1, EN 60950-1 Second Edition, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1 Second Edition, RoHS 6/6, TUV GS, UL 60950-1 Second Edition, VCCI Class A
Power Consumption Operational: 70 watt
Power Device: Internal power supply

Weight 12 lbs
Dimensions 24 × 15 × 6 in
