Product Description

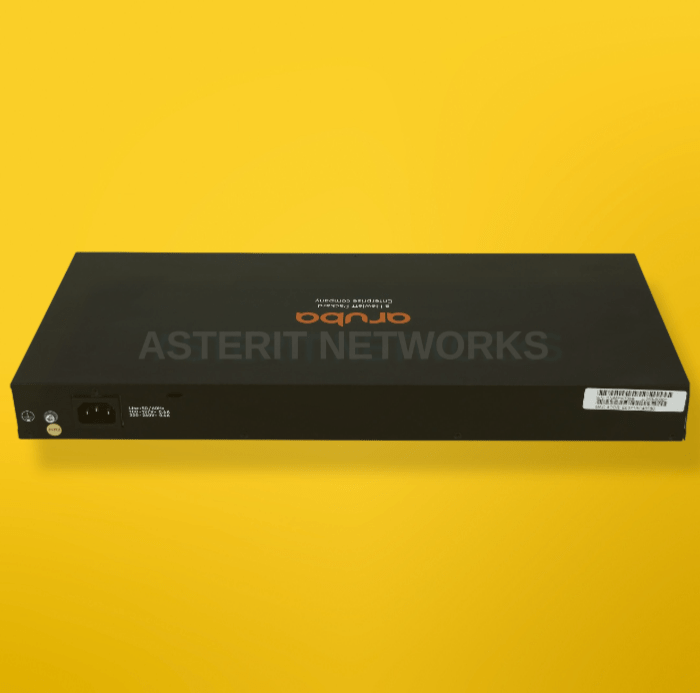

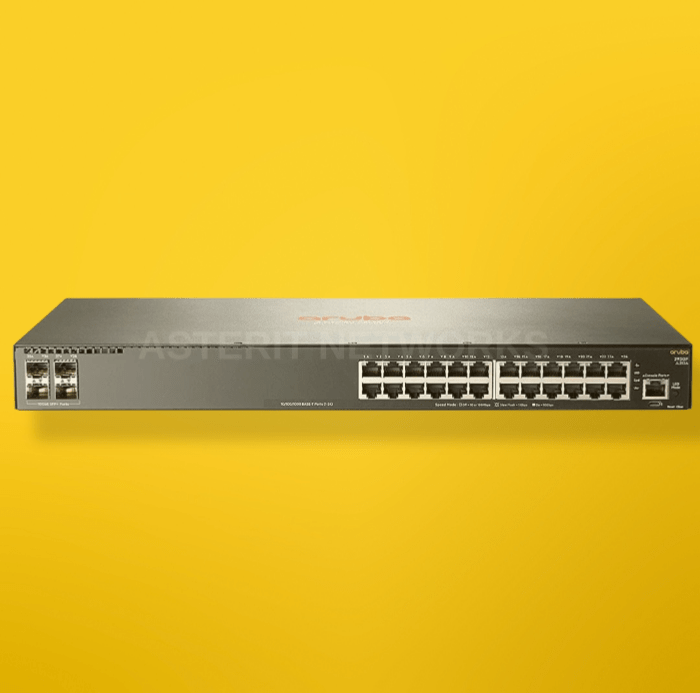

Aruba 2930F 24G 4SFP+ – Switch – L3
Product information
Dimensions & Weight
Depth: 20.02 cm
Height: 4.39 cm
Weight: 2.41 kg
Width: 44.25 cm
Environmental Parameters
Humidity Range Operating: 15 – 95% (non-condensing)
Humidity Range Storage: 15 – 90% (non-condensing)
Max Operating Temperature: 45 °C
Max Storage Temperature: 70 °C
Min Operating Temperature: 0 °C
Min Storage Temperature: -40 °C
Expansion / Connectivity
Expansion Slots: 1 (total) / 1 (free) x Expansion Slot
Installed Modules Qty (Max): 0 (installed) / 4 (max)
Interfaces: 24 x 1000Base-T RJ-45 ¦ 4 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x serial (console)
General
Authentication Method: RADIUS, PAP, CHAP, TACACS, TACACS+
Capacity: Jumbo frame size: 9220 ¦ IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Device Type: Switch – 24 ports – L3 – Managed – stackable
Enclosure Type: Rack-mountable 1U
Encryption Algorithm: MD5, SSL
Features: Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
Flash Memory: 4 GB
MAC Address Table Size: 32K entries
Performance: Throughput: 95.2 Mpps ¦ Switching capacity: 128 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 Gbps): 1.6 µs
Ports: 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Processor: 1 x ARM Cortex-A9: 1.016 GHz
RAM: 1 GB DDR3 SDRAM
Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
Routing Protocol: OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Subtype: Gigabit Ethernet
Miscellaneous
Compliant Standards: CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Included Accessories: Mounting screws, 4 mounting ears, 4 bumper feet, cable tie
Power
80 PLUS Certification: 80 PLUS Silver
Installed Qty: 1
Power Consumption Operational: 29.3 Watt
Power Device: Internal power supply
Voltage Required: AC 120/230 V
Software / System Requirements
Software Included: Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center
JL253A Aruba Networks 2930F 24G 4SFP+ – Switch
Aruba Networks, Network Switches
JL253A Aruba Networks 2930F 24G 4SFP+ – Switch
Original price was: $2,150.00.$1,295.00Current price is: $1,295.00.
Part#JL253A
Condition# NEW, Factory Sealed, Genuine
Aruba 2930F 24G 4SFP+ Switch, 24 10/100/1000 ports, 4 SFP+ ports
Warranty# 2 years
Availability: In stock
Free shipping on all orders!
- No-Risk 30 days Money Back Guarantee!
- No Hassle Refunds
- Secure Payments
Weight | 8 lbs |
---|---|
Dimensions | 22 × 14 × 5 in |
Condition | NEW |
