Product Description

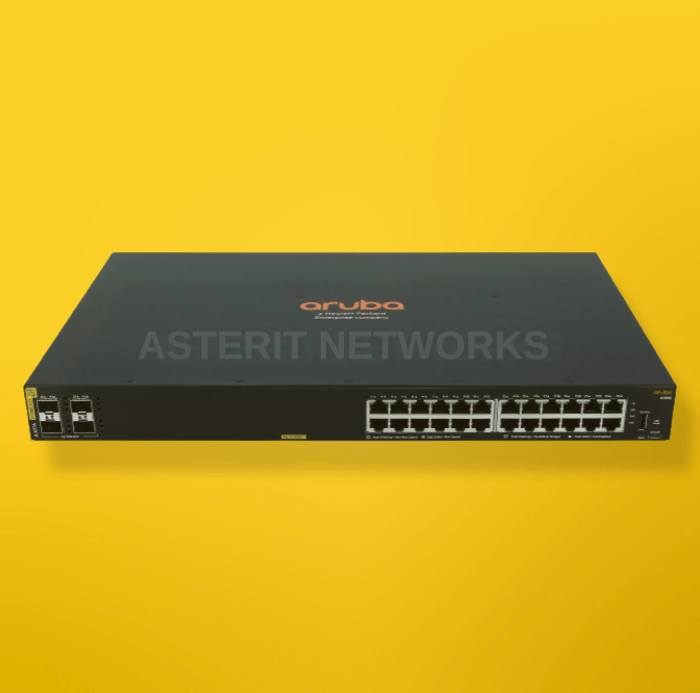

Aruba Networks 6100 24G Class4 PoE 4SFP+ – Switch – L3 – Managed – 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ – side to side airflow – rack-mountable – PoE+ (370 W)
Data transmission
Jumbo frames support: Y
Latency (1 Gbps): 1.5 µs
Latency (10 Gbps): 1.8 µs
MAC address table: 8192 entries
Packet buffer memory: 12.38 MB
Switching capacity: 128 Gbit/s
Throughput: 95.2 Mpps
Design
Airflow direction: Side-to-side airflow
Form factor: 1U
Product colour: Black
Rack mounting: Y
Stackable: Y
Management features
Quality of Service (QoS) support: Y
Switch layer: L3
Switch type: Managed
Multicast features
Multicast support: Y
Network
10G support: Y
Flow control support: Y
Link aggregation: Y
Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3x
Port mirroring: Y
Spanning tree protocol: Y
VLAN support: Y
Operational conditions
Operating relative humidity (H-H): 15 – 95 %
Operating temperature (T-T): 0 – 45 °C
Storage relative humidity (H-H): 15 – 90 %
Storage temperature (T-T): -40 – 70 °C
Performance
Built-in processor: Y
Flash memory: 16 MB
Internal memory: 4096 MB
Memory type: DDR3-SDRAM
Processor frequency: 1016 MHz
Processor model: ARM Cortex-A9
Virtual stacking (units): 16
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Console port: USB
SFP+ module slots quantity: 4
Power
AC input frequency: 50/60 Hz
AC input voltage: 100 – 240 V
Power consumption (max): 32.7 W
Power supply included: Y
Power over Ethernet (PoE)
Power over Ethernet (PoE): Y
Total Power over Ethernet (PoE) budget: 370 W
Security
Access Control List (ACL): Y
Authentication: MAC-based authentication
Authentication type: RADIUS,TACACS+
DHCP features: DHCP client
IGMP snooping: Y
Weight & dimensions
Depth: 268 mm
Height: 44 mm
Weight: 4.2 kg
Width: 442 mm
