Product Description

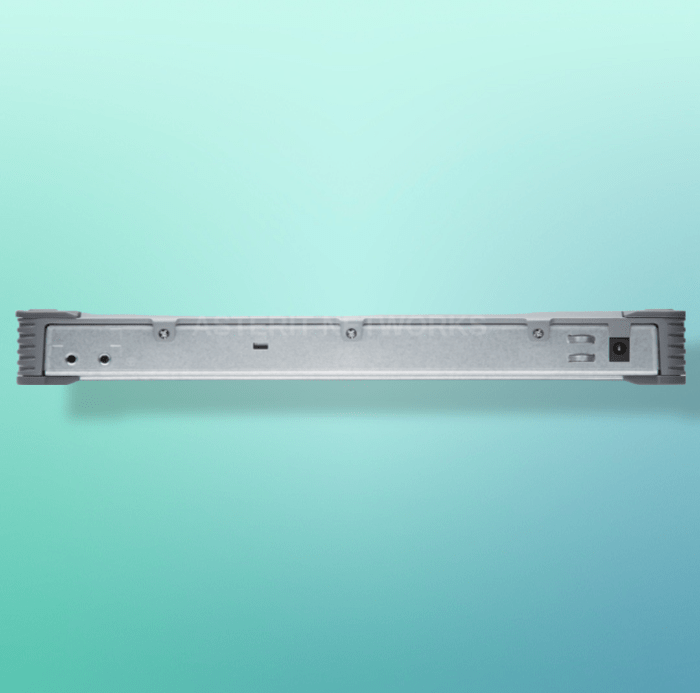

Juniper Networks SRX300 Services Gateway – security appliance
Features

Anti-spam protection, Anti-virus protection, DDos attack prevention, Dead Peer Detection (DPD), DHCP client, DHCP relay, DHCP server, DiffServ Code Point (DSCP) support, Fanless, Firewall protection, Generic Routing Encapsulation (GRE), Inspect SSL Encrypted Traffic, Intrusion Prevention System (IPS), IPSec NAT-Traversal (NAT-T), IPv4 support, IPv6 support, J-Flow, Label Distribution Protocol (LDP), LLDP support, MACsec support, NAT support, PAT support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, URL filtering, Virtual Private LAN Service (VPLS), VPN support, Weighted Random Early Detection (WRED)
Product type: Security appliance
Network Standard DDNS, DHCP, DNS, IPSec, PPPoE, RSVP
Ports 8
Connectivity Technology Wired
Data Link Protocols Ethernet, Fast Ethernet, Frame Relay, Gigabit Ethernet, HDLC, MLFR, MLPPP, PPP
Remote Management CLI, HTTP, SNMP, SSH, Telnet
Routing Protocol BGP, DVMRP, ECMP, IGMP, IGMPv2, IS-IS, MPLS, MSDP, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, RIP-1, RIP-2, Static IP routing, VRRP
Compliant Network Standards IEEE 802.1p, IEEE 802.1x
Connectivity
Interface Provided 1 x console – RJ-45, 1 x mini-USB, 1 x USB 2.0 – Type A, 2 x 1000Base-X – SFP (mini-GBIC), 6 x 1000Base-T – RJ-45
Power Consumption Operational 15.4 watt
Operating System JUNOS
Encryption 256-bit AES, 256-bit SHA, DES, IKE, IKEv2, MD5, PKI, SHA-1, SSL, Triple DES
Max Operating Temperature 104 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 10 – 90% (non-condensing)
Authentication Method Secure Shell (SSH), X.509 certificates
Capacity Concurrent sessions: 64000, GRE tunnels: 256, IPSec VPN tunnels: 256, IPv4 routing table entries: 256000, IPv6 routing table entries: 256000, MAC addresses: 15000, Maximum number of NAT rules: 1000, Maximum number of users: 50, Security policies: 1000, Security zones: 16, Virtual interfaces (VLANs): 16, Virtual routers: 32
Device Type External power adapter
VoIP Protocols SDP
Network Device Connection rate: 5000 connections per second, Firewall throughput (1518-byte packet size): 1 Gbps, Firewall throughput (64-byte packet size): 200 Kpps, Firewall throughput (IMIX): 500 Mbps, IPS throughput: 100 Mbps, VPN throughput (1400-byte packet size): 250 Mbps, VPN throughput (IPSec): 80 Mbps
Dimensions & Weight
Height 1.4 inch
Weight 4.37 lbs
Width 12.6 inch
Depth 7.5 inch
Compliant Standards FCC Class A certified, RoHS2
